Choosing the Right Gear Hob Matters More Than You Think
When selecting a gear hob for your production, one of the most common questions is:
👉 Should you choose a carbide gear hob or an HSS gear hob?
At first glance, HSS tools appear more cost-effective. However, in modern gear manufacturing—especially for EV transmissions and high-efficiency production—the real cost goes far beyond the tool price.
Choosing the wrong tool type can lead to:
- Frequent tool changes
- Unstable machining quality
- Increased downtime
- Higher cost per part (CPP)
This article breaks down the real differences between carbide and HSS gear hobs, helping you choose the right solution for your application.
What Is an HSS Gear Hob?
HSS (High-Speed Steel) gear hobs have been widely used for decades due to their toughness and lower upfront cost.
Key Characteristics of HSS Gear Hobs
- Good toughness and resistance to chipping
- Lower initial cost
- Suitable for moderate cutting speeds
- Compatible with re-sharpening
Typical Applications
- Low to medium volume production
- Softer materials
- Conventional gear cutting setups
👉 However, as cutting speeds and material hardness increase, HSS tools begin to show limitations.
What Is a Carbide Gear Hob?
Carbide gear hobs are designed for high-performance gear cutting environments where speed, heat, and wear resistance are critical.
Key Characteristics of Carbide Gear Hobs
- Extremely high hardness
- Excellent heat resistance
- Suitable for high-speed cutting
- Longer tool life in demanding conditions
In advanced manufacturing setups, Nobeve solid carbide gear hobs are often combined with optimized coatings to achieve stable performance in both dry and hard cutting.

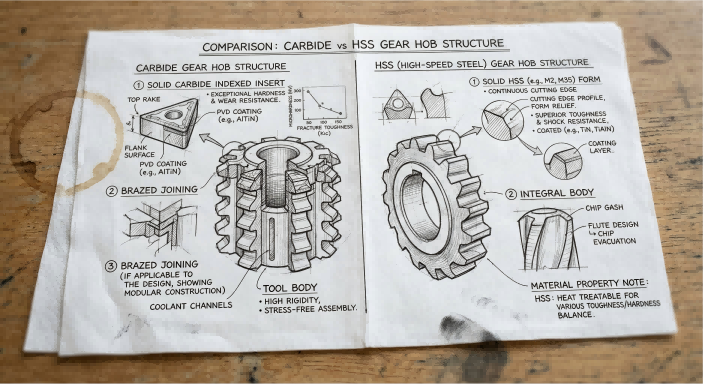

Carbide vs HSS Gear Hob: Side-by-Side Comparison
| Feature | Carbide Gear Hob | HSS Gear Hob |
|---|---|---|
| Cutting Speed | High | Medium |
| Tool Life | Long | Shorter |
| Heat Resistance | Excellent | Moderate |
| Hard Material Capability | Strong | Limited |
| Cost per Tool | Higher | Lower |
| Cost per Part | Lower (long-term) | Higher (long-term) |
👉 Key Insight:
While HSS tools cost less upfront, carbide gear hobs often deliver lower total cost due to longer life and higher efficiency.
When Should You Choose an HSS Gear Hob?
HSS gear hobs are still a good choice in certain scenarios:
Suitable Conditions
- Low-speed cutting
- Softer materials
- Small batch production
- Budget-sensitive projects
Advantages
- Lower initial investment
- Easier re-sharpening
- Good toughness in unstable setups
When Is a Carbide Gear Hob the Better Choice?
For most modern manufacturing environments, carbide gear hobs provide clear advantages.
Ideal Applications
- High-speed production lines
- Dry cutting environments
- Hardened materials (HRC45+)
- High precision gear requirements
Why Carbide Wins in These Scenarios
- Maintains edge stability at high temperatures
- Reduces wear under heavy loads
- Delivers consistent machining quality
In these applications, manufacturers using Nobeve gear hobs often achieve longer tool life and more stable production compared to traditional HSS solutions.
Cost Analysis: Tool Price vs Real Production Cost
One of the biggest misconceptions is focusing only on tool price.
HSS Gear Hob
- Lower purchase cost
- More frequent replacement
- Higher downtime
Carbide Gear Hob
- Higher initial cost
- Significantly longer tool life
- Reduced machine downtime
👉 Real impact:
Carbide tools typically result in a lower cost per part (CPP) despite higher upfront cost.
The Role of Coating in Carbide Gear Hobs
Carbide tools alone are not enough. Coating plays a critical role in performance.
High-performance coatings such as:
- ALCRONA PRO (for general applications)
- ALTENSA (for hard cutting)
help improve:
- Heat resistance
- Wear resistance
- Friction reduction
When applied correctly, they further extend tool life and stabilize machining performance.
👉 Learn more: Gear Hob Coating Guide
Real-World Performance Differences
In practical production environments, switching from HSS to carbide gear hobs often results in:
- 30–50% increase in tool life
- Reduced tool change frequency
- Improved gear consistency
- Lower overall tooling cost
This is especially true in high-volume or high-hardness applications.
How to Choose the Right Gear Hob for Your Application
The best choice depends on your specific production conditions:
Key Factors to Consider
- Workpiece material
- Hardness level
- Cutting speed
- Production volume
- Accuracy requirements
👉 There is no one-size-fits-all answer—but for most modern applications, carbide is becoming the preferred solution.
👉 Not sure how to choose?
👉 Read: How to Choose the Right Gear Hob
FAQ: Carbide vs HSS Gear Hobs
Are carbide gear hobs always better than HSS?
Not always. For low-speed or low-volume applications, HSS can still be more economical.
Why do carbide gear hobs last longer?
They have higher hardness and better heat resistance, especially when combined with advanced coatings.
Is carbide suitable for dry cutting?
Yes. Carbide gear hobs perform significantly better than HSS in dry cutting due to superior thermal resistance.
Can HSS handle hardened materials?
Limited. HSS struggles with materials above HRC45, where carbide performs much better.
Final Thoughts
As gear manufacturing continues to evolve, especially with the rise of EV applications and high-efficiency production, the limitations of traditional HSS tools are becoming more apparent.
Carbide gear hobs, when properly optimized with coating and application matching, provide:
- Longer tool life
- Higher cutting efficiency
- More stable machining results
Need Help Choosing Between Carbide and HSS?
If you are unsure which gear hob is best for your process, a quick evaluation can make a significant difference.
You can share:
- Material and hardness
- Production requirements
- Current tool issues
👉 Based on this, a tailored recommendation can help you reduce cost and improve performance.
