Why Gear Hob Coating Matters More Than Ever
In modern gear manufacturing—especially in EV transmissions and high-load applications—tool performance is no longer determined by substrate alone.
Coating has become a critical factor in controlling:
- Heat generation
- Friction behavior
- Tool wear rate
Without the right coating, even high-quality gear hobs can fail prematurely.

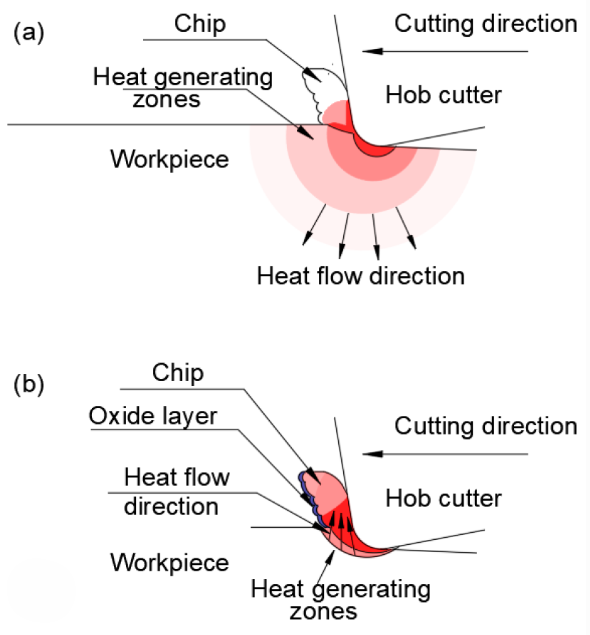

👉 Gear hobbing cutting zone / thermal distribution diagram
What Causes Gear Hob Failure?
Understanding failure mechanisms helps you select the right coating.
1. Thermal Overload
In dry hobbing, cutting temperatures can exceed 1000°C.
This leads to:
- Edge softening
- Micro-cracks
- Sudden tool failure

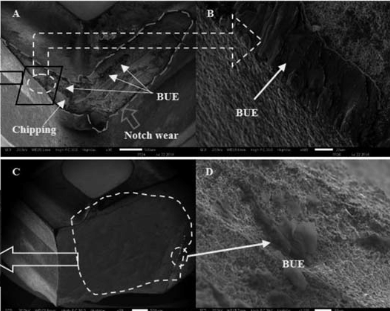

2. Built-Up Edge (BUE)
Material adhesion on the cutting edge causes:
- Poor surface finish
- Profile deviation
- Increased friction
👉 These issues are directly influenced by coating performance.
How PVD Coatings Improve Gear Hob Performance
PVD coatings act as a protective layer between the tool and workpiece.
Key Benefits:
- Thermal barrier → reduces heat penetration
- Low friction → improves chip flow
- High hardness → slows wear
In optimized solutions like Nobeve gear hobs, coating is matched with substrate and application conditions.
Common Gear Hob Coating Types
ALCRONA PRO
- Balanced performance
- Suitable for ≤ HRC45
ALTENSA
- High thermal stability
- Ideal for hardened materials
👉 Not sure which coating fits your application?
👉 Read: How to Choose the Right Gear Hob
Coating vs Tool Life: Real Impact
In real production environments, proper coating selection can:
- Increase tool life by 30–70%
- Reduce downtime
- Improve gear consistency
Best Practices to Maximize Tool Life
- Use correct coating for material
- Optimize cutting parameters

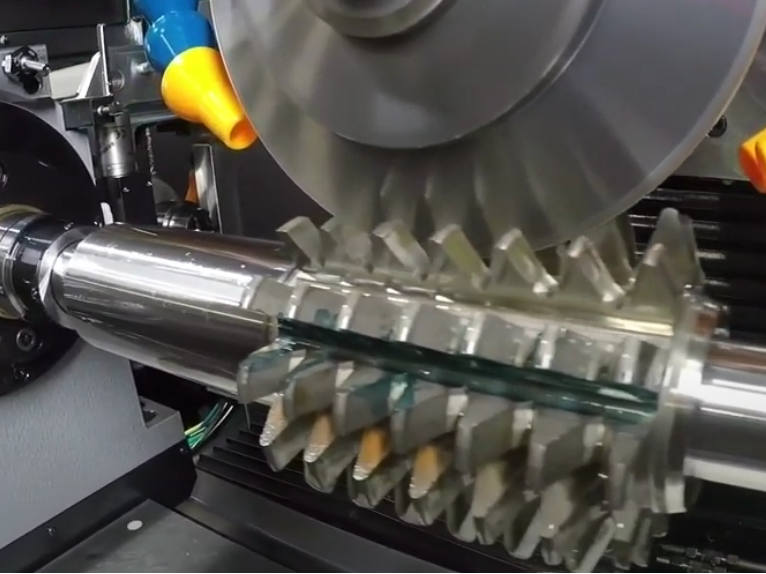

- Apply re-coating after re-grinding
- Monitor wear regularly
❓ FAQ: Gear Hob Coatings
What is the best coating for gear hobs?
It depends on the application. General cutting uses balanced coatings, while hard cutting requires high thermal resistance coatings.
How do coatings extend tool life?
They reduce heat, friction, and wear, protecting the cutting edge.
Can coating alone solve tool failure?
No. Tool performance also depends on material, geometry, and cutting conditions.
Why is coating important in dry cutting?
Because there is no coolant, coating becomes the primary thermal protection.
Final Thoughts
Coating is no longer optional—it is essential for modern gear manufacturing.
Choosing the right coating can significantly improve performance, reduce cost, and stabilize production.
