Surgical Precision: Where Every Micron Matters
Advanced gear cutting solutions for the medical industry. Ensuring silence, reliability, and contamination-free machining for life-critical devices.
Nobeve Provide Awesome Gear Tools
With Best Service
Industry Overview

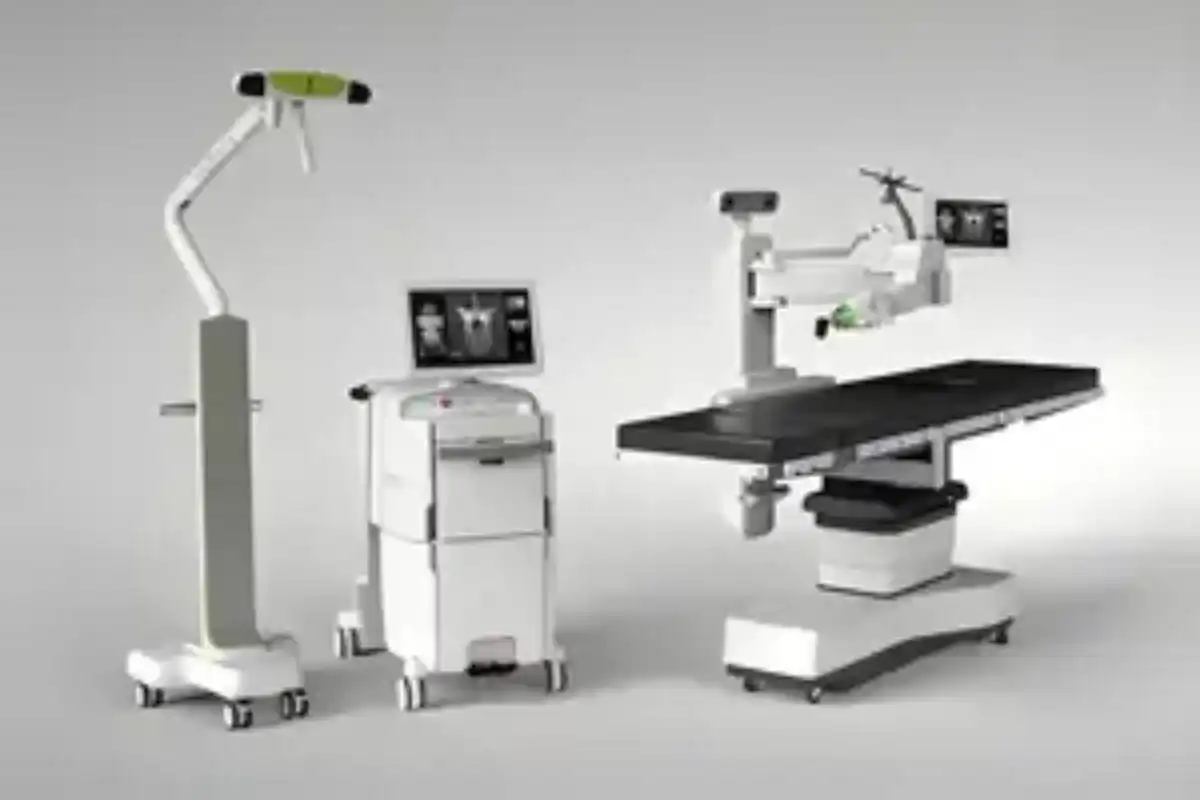

Powering the Future of Healthcare
Medical gears demand biocompatibility, extreme cleanliness, and absolute reliability. Beyond mechanical performance, precision is vital for patient safety. We provide specialized tooling for four core applications, addressing the unique manufacturing challenges of the medical device industry.
4.Automated diagnostic systems utilize high-speed pick-and-place robots for sample handling. These mechanisms require consistent, repetitive positioning accuracy and silent operation to ensure efficient, error-free clinical laboratory workflows.
Critical Part: Miniature rack and pinions, timing gears.
Industry Insight
Engineering Challenges in the Field
Clinical Grade Challenges
Medical gears commonly utilize medical-grade stainless steel (such as 17-4PH, 316L) or titanium alloys. These materials possess extreme toughness and are highly prone to Built-Up Edge (BUE)during machining. Once chips adhere to the cutting edge, they scratch the gear surface and leave micro-cracks—a condition that is strictly prohibited for medical devices, where fatigue failure could be life-threatening.
Micro-Rigidity
The internal gear rings of surgical robots often have diameters smaller than 10mm, forcing the tools to be extremely slender. Under cutting forces, conventional steel tool shanks tend to bend (tool deflection), resulting in a tapered gear profile that compromises the joint’s positioning accuracy.
Scenario-Based Solutions

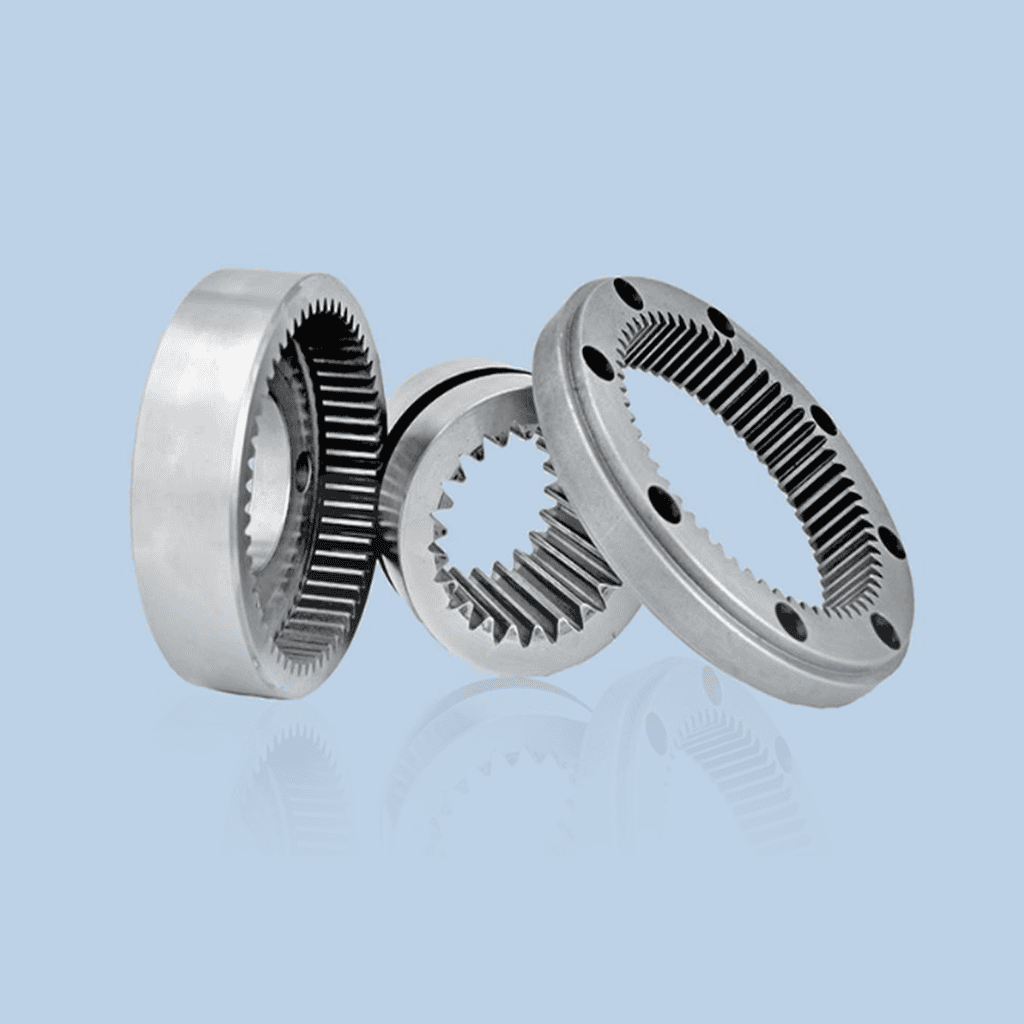

Surgical Robot Joint (Micro Skiving)
- Target Component:Micro Internal Ring Gear (Module 0.3 – 0.8)
- The Challenge:The space is extremely confined, making grinding impossible; yet, H7-class precision is required to ensure zero backlash.
- Nobeve Solution:W-Series Solid Carbide Skiving Tool
- Technical Logic:
- Static Stiffness:The W-Series is manufactured from solid carbide, featuring an elastic modulus three times that of high-speed steel. When machining deep-bore micro-gears, this exceptional rigidity prevents tool shank deflection, ensuring that the helix deviation (Fβ) is controlled at the micron level.
- Applicable Machine:
- Swiss-Type Lathe / Micro Skiving Center(e.g., Willemin-Macodel, Bumotec).
- Req: High-speed synchronized spindle, Oil coolant.

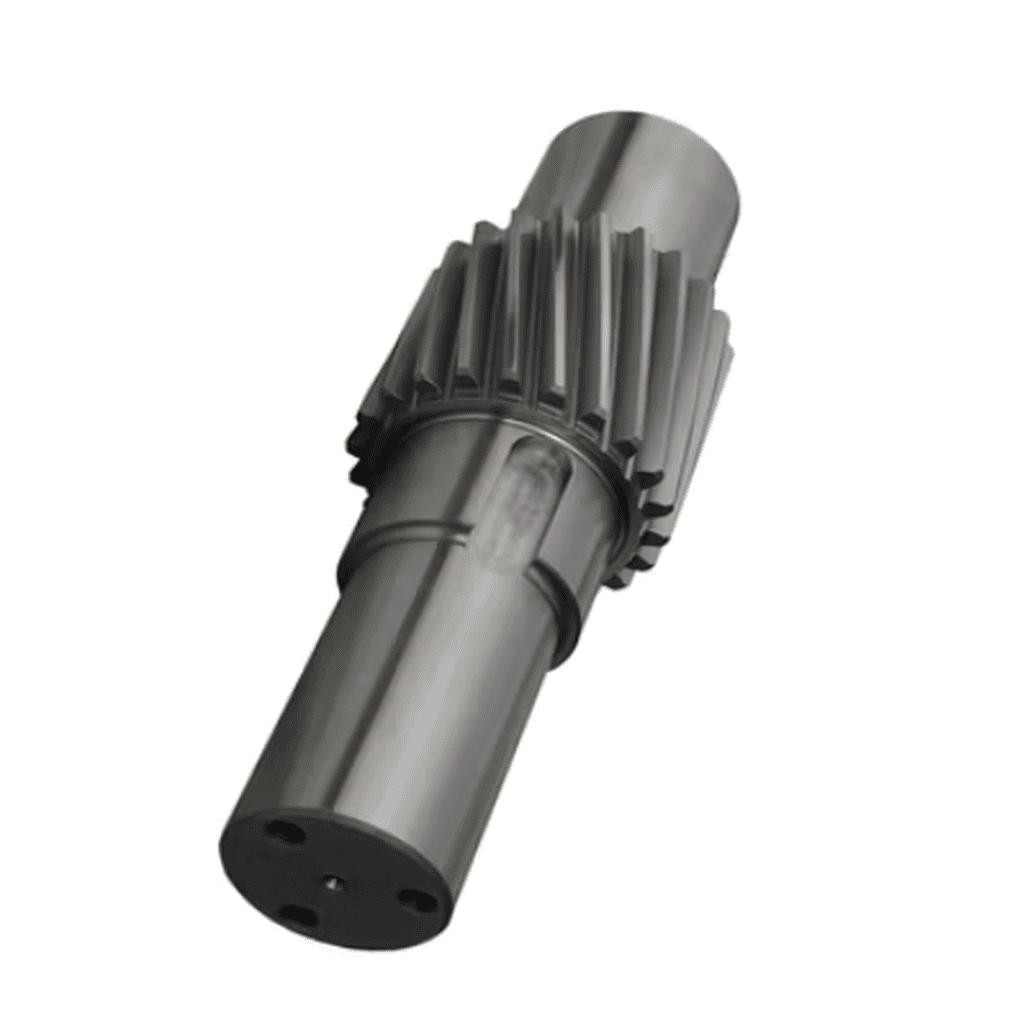

Bone Drill Transmission (Anti-Sticking)
- Target Component:High-Speed Pinion (17-4PH Stainless Steel)
- The Challenge:Materials are highly prone to sticking, and Built-Up Edge (BUE) leads to poor surface finish and excessive noise.
- Nobeve Solution:K-Series Hob (Alcrona Pro Coated)
- Technical Logic:
- Anti-Adhesion:We recommend the K-Series paired with the Balzers Alcrona Pro (AlCrN) This coating features an extremely low coefficient of friction and high chemical inertness, acting like a non-stick pan to prevent stainless steel chips from bonding to the cutting edge, fundamentally eliminating Built-Up Edge (BUE).
- Sharpness:Maintaining a sharp cutting edge is the key to reducing cutting heat; low-temperature cutting helps prevent work hardeningof the material.
- Applicable Machine:
- Precision CNC Hobber(e.g., Wahli, Affolter).
- Req: Clean oil filtration system to prevent chip recirculation.

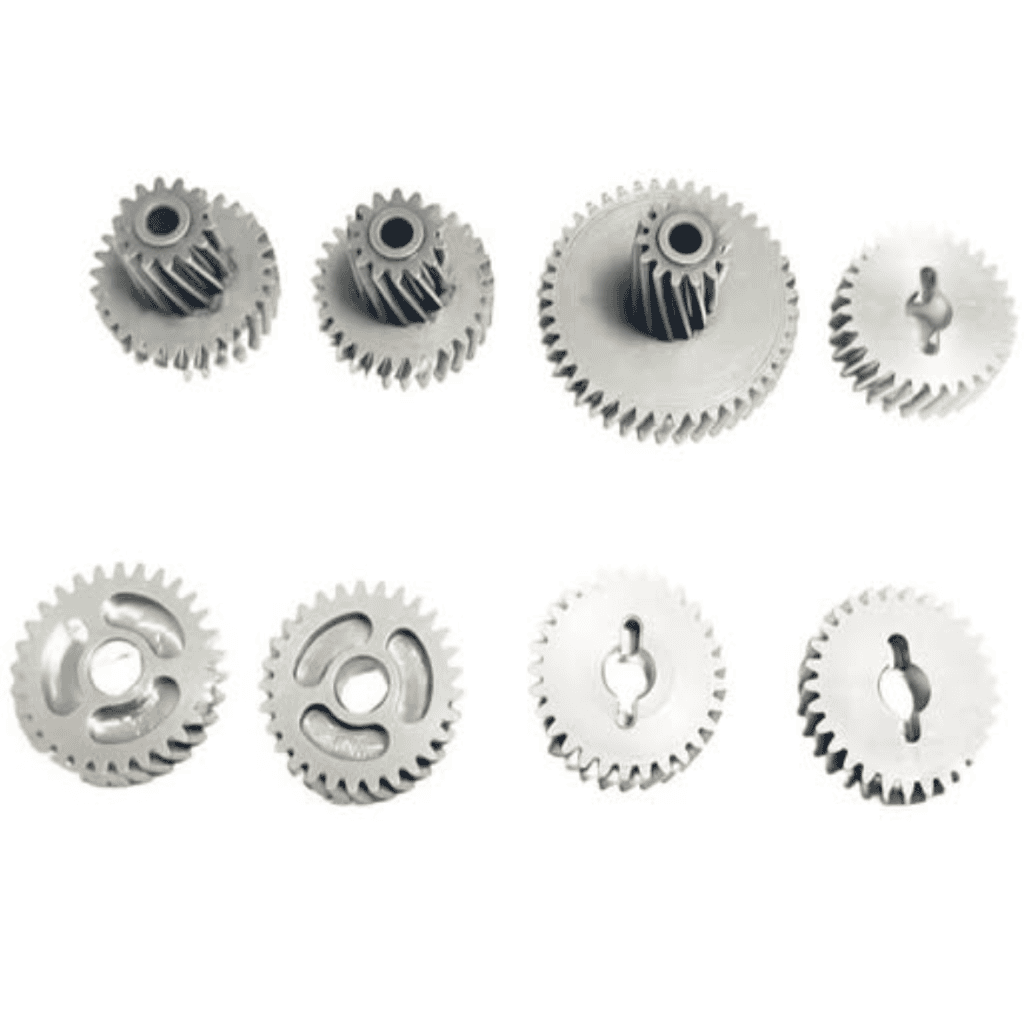

Drug Delivery Pumps (Silent Run)
- Target Component:Micro Helical Gear (Plastic/Brass)
- The Challenge:Extremely small module (M0.15); requires absolute silence and smooth operation.
- Nobeve Solution:K-Series Solid Shank Hob (Class AAA)
- Technical Logic:
- Runout Control:For micro-dosing pumps, even a single revolution of runout in the gear can cause fluctuations in drug delivery volume. K-Series solid shank hobseliminate installation errors, controlling the Total Indicator Runout (TIR) to within 002mm to ensure the ultimate smoothness of gear meshing.
- Applicable Machine:
- Micro Gear Hobbing Machine.
- Req: High RPM (> 5000).
Tool Selection Table
| Application | Material Hardness | Recommended Tool | Key Benefit | Machine Required |
| Surgical Robot | Soft | K-Series Hobs | High Rigidity | Micro Turn-Mill |
| Bone Drill | Soft | K-Series Hobs | Anti-Sticking Coating | Precision Hobber |
| Micro Pump | Soft | K-Series Hobs | Zero Runout | Swiss Lathe / Hobber |
| Scanning Bed | Soft | N-Series Hobs | Smooth Transmission | Standard CNC |
Customer voices
Trusted by Industry Experts Globally
Expert Technical FAQ
A
17-4PH is gummy and has a high work-hardening rate. As the tool cuts, the material tends to “smear” and stick to the cutting edge (Built-Up Edge), rather than breaking cleanly. This increases friction and heat. Nobeve K-Series hobs use a positive rake angle design and Alcrona Pro coating specifically to shear the material cleanly and prevent adhesion.
A
While K-Series supports dry cutting, for medical parts (especially stainless steel), we highly recommend using Medical-Grade Cutting Oil. Stainless steel generates high heat that can cause work-hardening without coolant. The oil also flushes away fine chips that could mar the surface. Post-process ultrasonic cleaning is standard practice to remove oil residues.
A
With our W-Series Solid Carbide micro skiving cutters, we can machine internal gears with a diameter as small as 11 mm. The limiting factor is the shank stiffness. Our solid carbide design maximizes rigidity, allowing us to go smaller than indexable or brazed tools ever could.
A
Burrs can detach during surgery, which is dangerous. We use Ultra-Fine Grain Carbide (0.2µm) for our K-Series. This allows us to grind an incredibly sharp cutting edge that slices the material rather than tearing it. For critical applications, we also recommend integrating a Chamfer Hob in the process to mechanically remove any potential burr at the tooth tip.
A
Our coatings (Alcrona Pro, TiAlN) are PVD (Physical Vapor Deposition) coatings. They are extremely thin (2-4µm) and tightly adhered. While the tool coating itself does not transfer to the part, it ensures the part’s surface integrity. The finished gear, after cleaning and passivation, meets standard biocompatibility requirements. The coating helps maintain the surface purity by preventing tool material transfer.
A
In micro gears (Module < 0.5), the bore of a standard hob is very small. Mounting it on an arbor introduces runout (eccentricity) due to the fit tolerance. Even 5 microns of runout is huge for a micro gear. Solid Shank Hobs are ground as one piece with the shaft, eliminating this assembly error and guaranteeing near-zero runout.
A
Yes. We understand medical development cycles involve iteration. We have a dedicated “Fast Track” for custom prototypes. We can manufacture a custom K-Series or W-Series tool in as little as 3-4 weeks to help you validate your gear design quickly before moving to mass production.
A
In medical manufacturing, a tool breaking mid-cut can scrap a very expensive part. We use a Linear Wear Predictability model. By strictly controlling the carbide grain size and coating thickness, our tools wear down slowly and predictably, rather than failing catastrophically. This allows you to set safe tool change intervals with confidence.
